RF Adapters
Professional RF adapters for inter-series connections, gender changes, and specialty configurations. Low insertion loss and excellent VSWR characteristics for reliable signal transmission.
19 products
SMA-KYK RF Adapter
"Temperature Range: -40~125 degree Celsius Characteristic Impedance: 50 ohms Frequency Range: 0~3GHz Dielectric Withstanding Voltage: 1000V Insulation Resistance: 5000MΩ Contact Resistance: center conductor 5mΩ, outer conductor 2.5mΩ VSWR: ≤1.2 (0~3GHz) Durability: 500 cycles"
MMBX-JJ with Base RF Adapter
"Material of Housing: beryllium copper Material of Pin: beryllium copper Material of Base: brass Gold Plating: 0.1μm"
SMA/MMCX-KK RF Adapter
Temperature Range: -40~125 degree Celsius Characteristic Impedance: 50 ohms Frequency Range: 0~6GHz Dielectric Withstanding Voltage: 1000V Insulation Resistance: 5000MΩ Contact Resistance: center conductor 5mΩ, outer conductor 2.5mΩ VSWR: ≤1.1 (0~3GHz); ≤1.15 (0~6GHz); ≤1.2 (0~8GHz); ≤1.4 (0~10GHz) Durability: 500 cycles
SMP-KK RF Adapter
Temperature Range: -40~125 degree Celsius Characteristic Impedance: 50 ohms Frequency Range: 0~6GHz Dielectric Withstanding Voltage: 1000V Insulation Resistance: 5000MΩ Contact Resistance: center conductor 5mΩ, outer conductor 2.5mΩ VSWR: ≤1.2 (0~6GHz) Durability: 500 cycles
SMA/IPX 5-JJ RF Adapter
"Temperature Range: -40~125 degree Celsius Characteristic Impedance: 50 ohms Frequency Range: 0~6GHz Dielectric Withstanding Voltage: 1000V Insulation Resistance: 5000MΩ Contact Resistance: center conductor 5mΩ, outer conductor 2.5mΩ VSWR: ≤1.3 (0~6GHz) Durability: 500 cycles"
SMA/IPX-JJ RF Adapter
"Temperature Range: -40~125 degree Celsius Characteristic Impedance: 50 ohms Frequency Range: 0~6GHz Dielectric Withstanding Voltage: 750V Insulation Resistance: 1000MΩ Contact Resistance: center conductor 5mΩ, outer conductor 2.5mΩ VSWR: ≤1.2 (0~6GHz) Durability: 500 cycles"
SMA/SSMB-KK RF Adapter
"Temperature Range: -40~125 degree Celsius Characteristic Impedance: 50 ohms Frequency Range: 0~6GHz Dielectric Withstanding Voltage: 750V Insulation Resistance: 1000MΩ Contact Resistance: center conductor 5mΩ, outer conductor 2.5mΩ VSWR: ≤1.1(0~6GHz) Durability: 500 cycles"
SMA/MCX-KJ RF Adapter
Temperature Range: -40~125 degree Celsius Characteristic Impedance: 50 ohms Frequency Range: 0~6GHz Dielectric Withstanding Voltage: 750V Insulation Resistance: 1000MΩ Contact Resistance: center conductor 5mΩ, outer conductor 2.5mΩ VSWR: ≤1.2 (0~6GHz) Durability: 500 cycles
SSMB-JJ RF Adapter
"Temperature Range: -40~125 degree Celsius Characteristic Impedance: 50 ohms Frequency Range: 0~3GHz Dielectric Withstanding Voltage: 750V Insulation Resistance: 1000MΩ Contact Resistance: center conductor 5mΩ, outer conductor 2.5mΩ VSWR: ≤1.2 (0~3GHz) Durability: 500 cycles"
SMP-KK RF Adapter
Temperature Range: -40~125 degree Celsius Characteristic Impedance: 50 ohms Frequency Range: 0~6GHz Dielectric Withstanding Voltage: 1000V Insulation Resistance: 5000MΩ Contact Resistance: center conductor 5mΩ, outer conductor 2.5mΩ VSWR: ≤1.2 (0~6GHz) Durability: 500 cycles
SMA/MMCX-KYK RF Adapter
"Temperature Range: -40~125 degree Celsius Characteristic Impedance: 50 ohms Frequency Range: 0~3GHz Dielectric Withstanding Voltage: 1000V Insulation Resistance: 5000MΩ Contact Resistance: center conductor 5mΩ, outer conductor 2.5mΩ VSWR: ≤1.3 (0~3GHz) Durability: 500 cycles"
SMA/PSMP-KK RF Adapter
"Temperature Range: -40~125 degree Celsius Characteristic Impedance: 50 ohms Frequency Range: 0~10GHz Dielectric Withstanding Voltage: 1000V Insulation Resistance: 5000MΩ Contact Resistance: center conductor 5mΩ, outer conductor 2.5mΩ VSWR: ≤1.1 (0~6GHz); ≤1.15 (0~8GHz); ≤1.2 (0~10GHz) Durability: 500 cycles"
SMA/SSMB-KJ RF Adapter
"Temperature Range: -40~125 degree Celsius Characteristic Impedance: 50 ohms Frequency Range: 0~6GHz Dielectric Withstanding Voltage: 750V Insulation Resistance: 1000MΩ Contact Resistance: center conductor 5mΩ, outer conductor 2.5mΩ VSWR: ≤1.1(0~6GHz) Durability: 500 cycles"

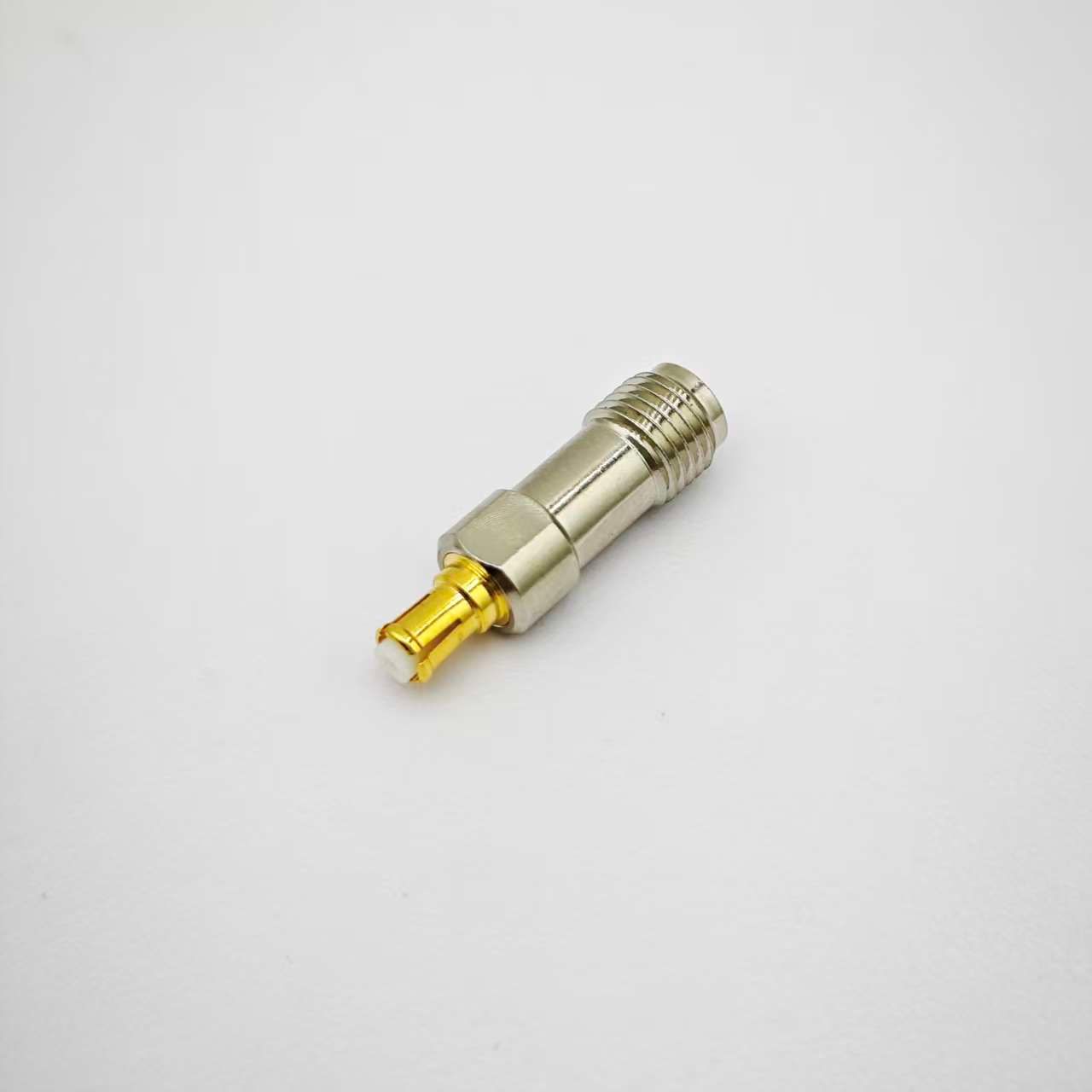

SMA/FSMP RF Adapter
SMA
SMP(MAX)-KK RF Adapter
"Temperature Range: -40~125 degree Celsius Characteristic Impedance: 50 ohms Frequency Range: 0~6GHz Dielectric Withstanding Voltage: 1000V Insulation Resistance: 5000MΩ Contact Resistance: center conductor 5mΩ, outer conductor 2.5mΩ VSWR: ≤1.2 (0~6GHz) Durability: 500 cycles"
SMA/MCX-KJ RF Adapter
Temperature Range: -40~125 degree Celsius Characteristic Impedance: 50 ohms Frequency Range: 0~6GHz Dielectric Withstanding Voltage: 1000V Insulation Resistance: 5000MΩ Contact Resistance: center conductor 5mΩ, outer conductor 2.5mΩ VSWR: ≤1.1 (0~3GHz); ≤1.15 (0~6GHz); ≤1.2 (0~8GHz); ≤1.4 (0~10GHz) Durability: 500 cycles
SMA-KKY22.2 RF Adapters
Model: SMA-KKY22.2

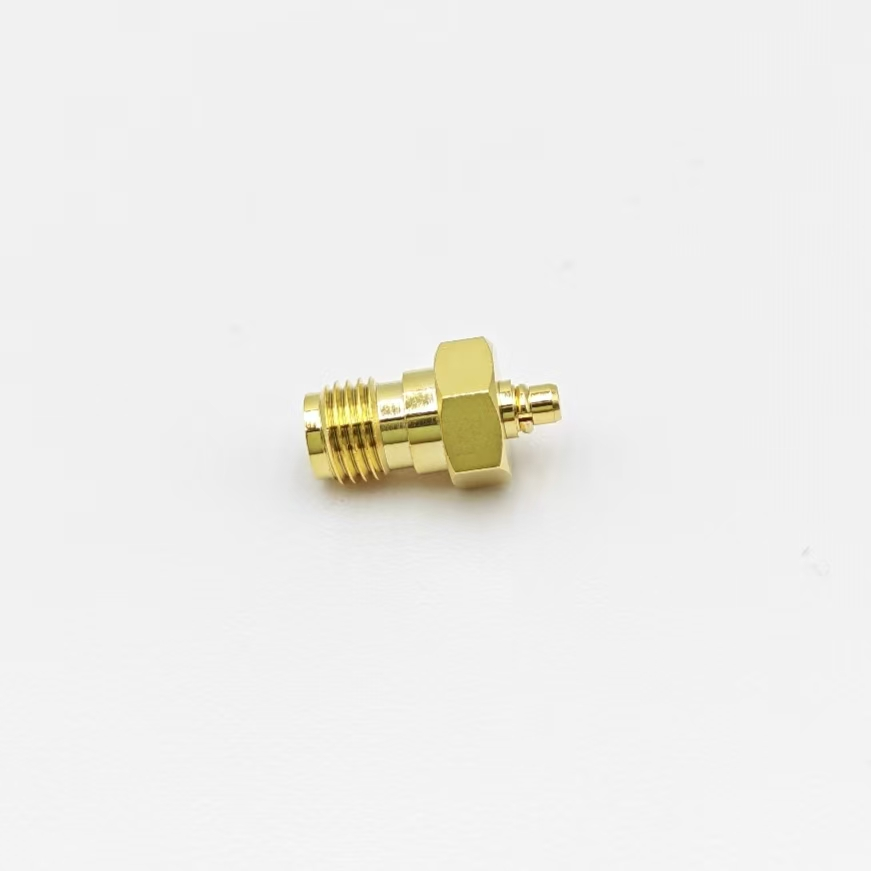

SMA/MMCX-KJ RF Adapters
Model: SMA/MMCX-KJ

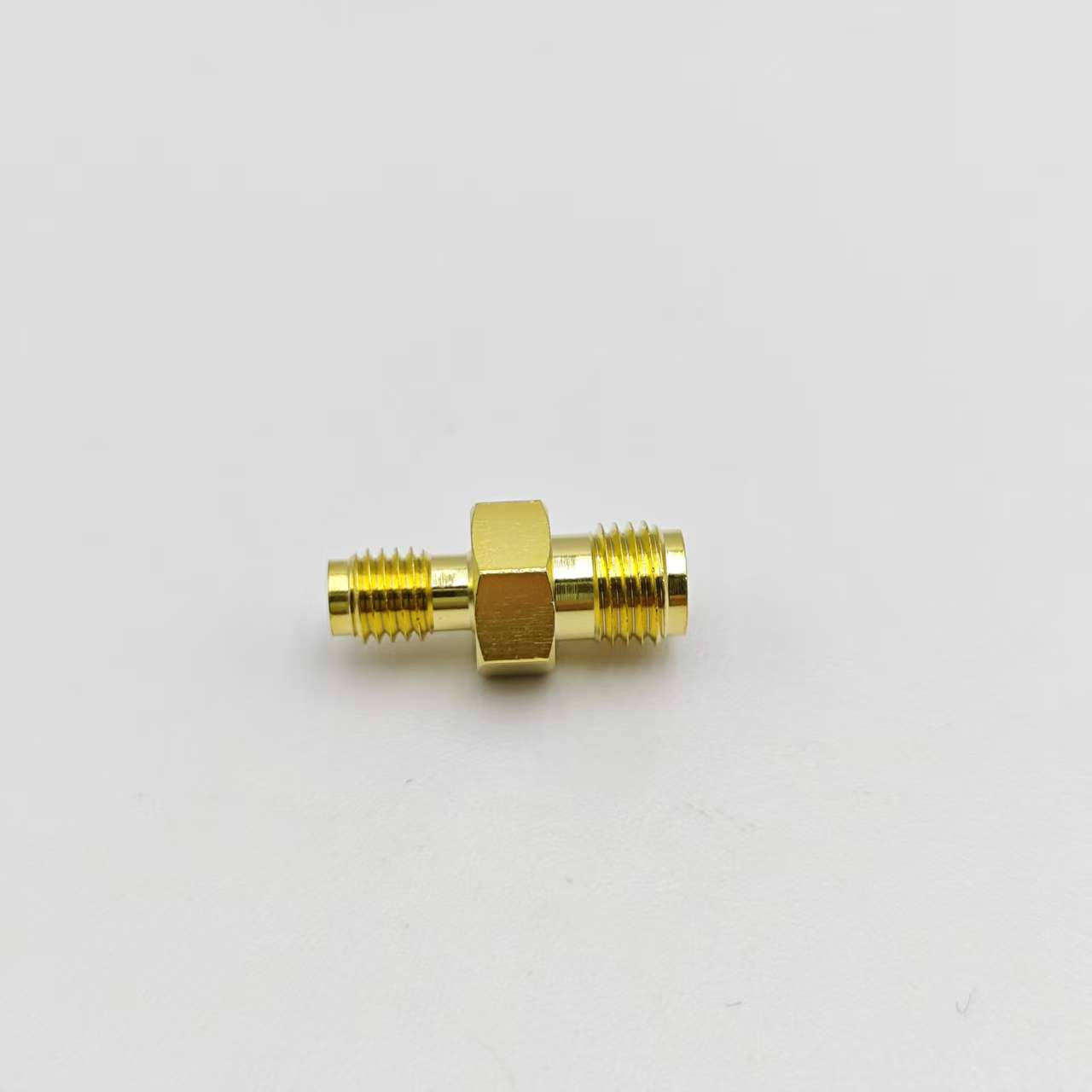

SMA/SSMA-KK RF Adapters
Model: SMA/SSMA-KK
Custom Adapter Solutions
Need a specific adapter configuration not listed here? Our engineering team can design and manufacture custom adapters to meet your exact specifications including special impedance matching, unique connector combinations, and application-specific requirements.
Request Custom AdapterRF Adapters for Every Application
RF adapters are essential components for creating seamless connections between different connector series, changing gender configurations, or adapting impedance in RF systems. Baierde Electronic manufactures precision RF adapters that maintain signal integrity while providing the flexibility needed for complex RF installations and test setups.

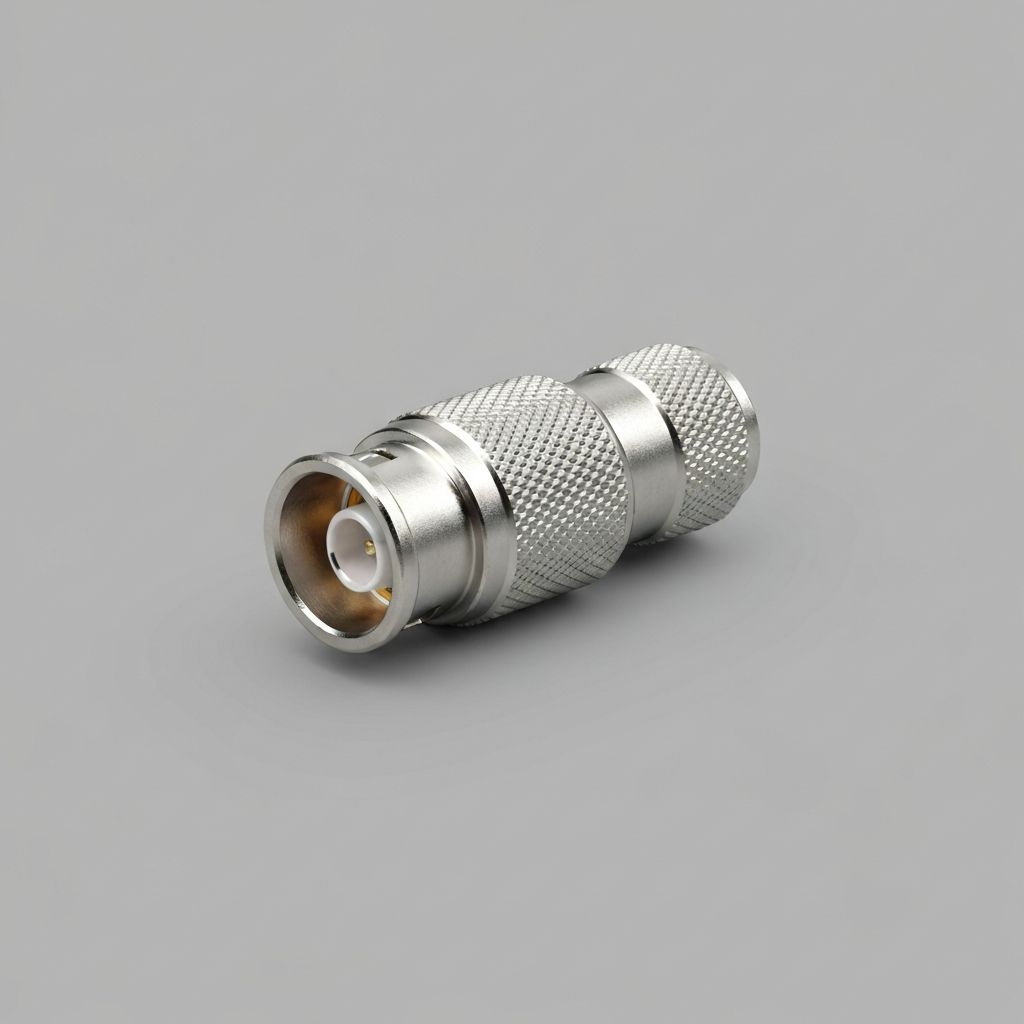

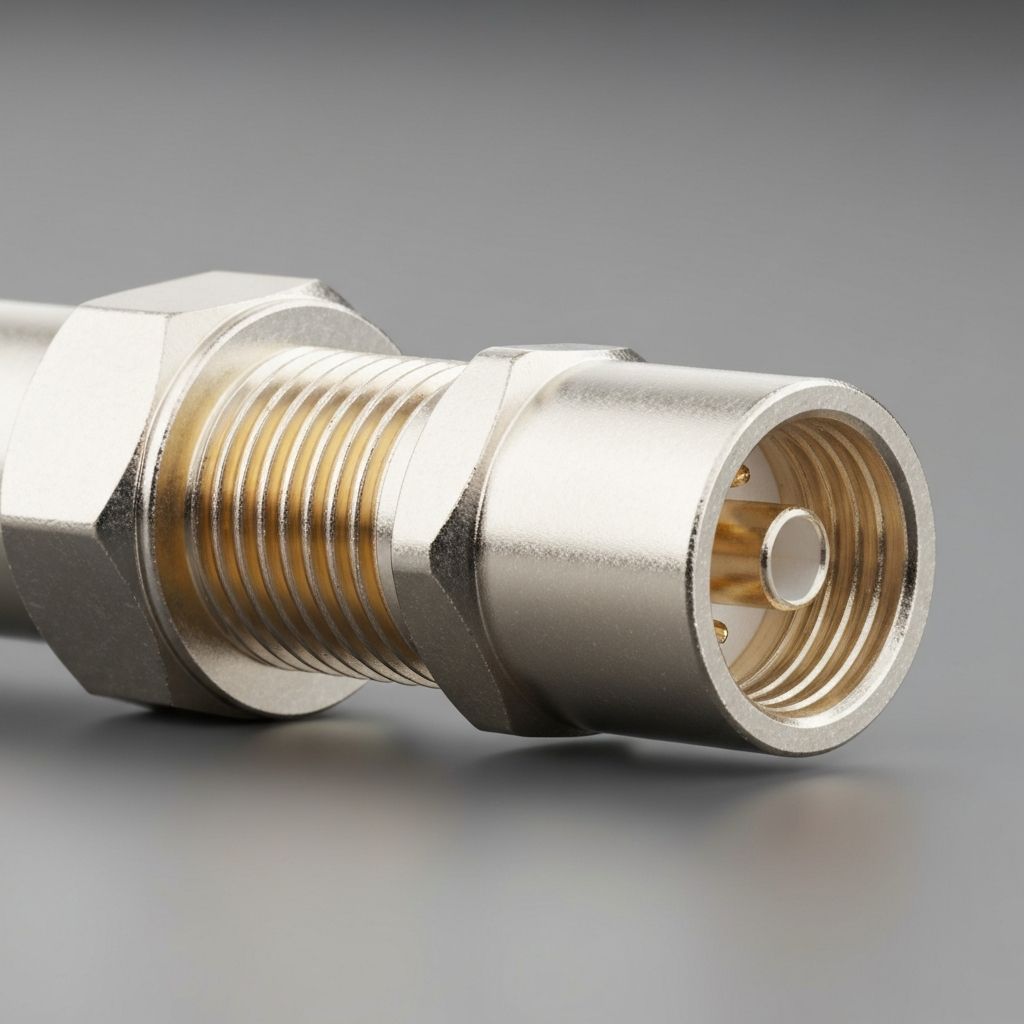

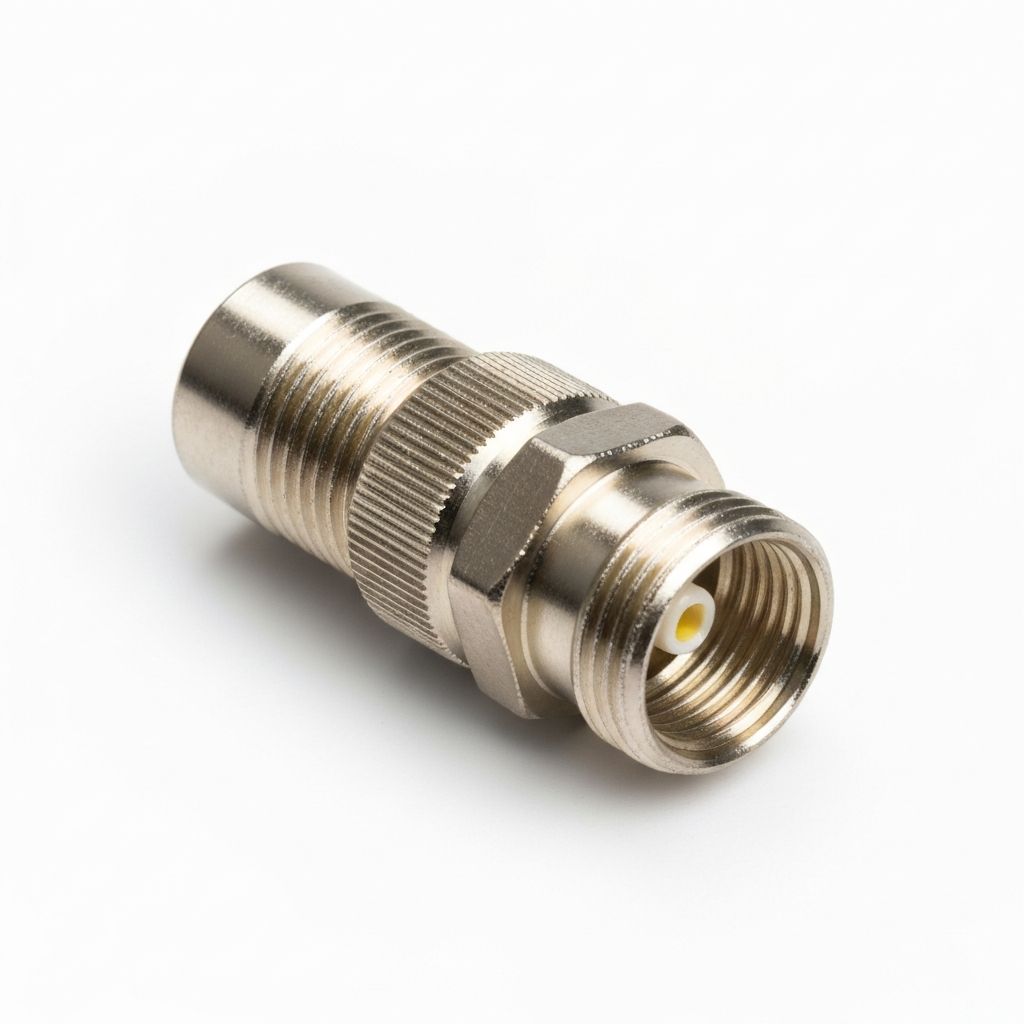

Our adapter portfolio includes inter-series adapters (such as BNC to SMA, N-Type to SMA), gender changers (male-to-male, female-to-female), right angle adapters, and specialty configurations. Each adapter is precision machined to ensure consistent impedance, minimize insertion loss (typically less than 0.2 dB), and maintain excellent VSWR characteristics across the specified frequency range.
All adapters are manufactured in our ISO-certified facility using high-quality materials including brass bodies with gold or nickel plating and PTFE dielectrics. We perform 100% testing to verify electrical performance and mechanical tolerances, ensuring reliable operation in demanding telecommunications, aerospace, and test equipment applications.
